maruti fronx engine oil capacity

Knowing the exact engine oil capacity for your Fronx isn’t just a technical detail,

it’s the key to unlocking peak performance, fuel efficiency, and a longer engine life. In this guide, we reveal the Maruti Fronx engine oil capacity,

Ready to dive into engine care?

Maruti Fronx Engine Oil Capacity

The Maruti Fronx requires 3.1 litres of engine oil, including the oil filter, for all its engine variants: the 1.0L turbo petrol, 1.2L naturally aspirated petrol, and 1.2L CNG.

This precise capacity ensures optimal lubrication and performance.

Let’s Know Your Maruti Fronx Engine Variants

The Fronx comes with three BS6-compliant engines, each tailored for different driving needs. Here’s a quick overview:

Year	Modification	Engine code	Oil Capacity (litres)
2023 – Now	1.0L ALPHA AT	K10C	3.1L
2023 – Now	1.0L ALPHA MT	K10C	3.1L
2023 – Now	1.0L DELTA+ MT	K10C	3.1L
2023 – Now	1.0L ZETA AT	K10C	3.1L
2023 – Now	1.0L ZETA MT	K10C	3.1L

Year	Modification	Engine code	Oil Capacity (litres)
2023 – Now	1.2L DELTA AGS	K12N	3.7L
2023 – Now	1.2L DELTA MT	K12N	3.7L
2023 – Now	1.2L DELTA+ AGS	K12N	3.7L
2023 – Now	1.2L DELTA+ MT	K12N	3.7L
2023 – Now	1.2L SIGMA MT	K12N	3.7L

Year	Modification	Engine code	Oil Capacity (litres)
2023 – Now	1.2L DELTA MT	K12N	3.7L
2023 – Now	1.2L SIGMA MT	K12N	3.7L

Recommended Engine Oil Grades for Maruti Fronx

Choosing the right oil grade is as important as knowing the capacity.

Maruti Suzuki recommends:

In the K10C 1.0L Turbo boosterjet engine needs 3.7L of SAE 5W – 30 , Ideal for petrol and CNG engines, offers robust protection. and quality classification was API SN or SP.

and fronx 1.2 engine oil grade was according to user manul API SN or SP of SAE 0W – 16 engine oil , it was Best for petrol engines, enhances fuel efficiency and cold starts.

the Maruti fronx 1.2L K12N petro and CNG Engine was takes 3.7 litres of engine oil capacity.

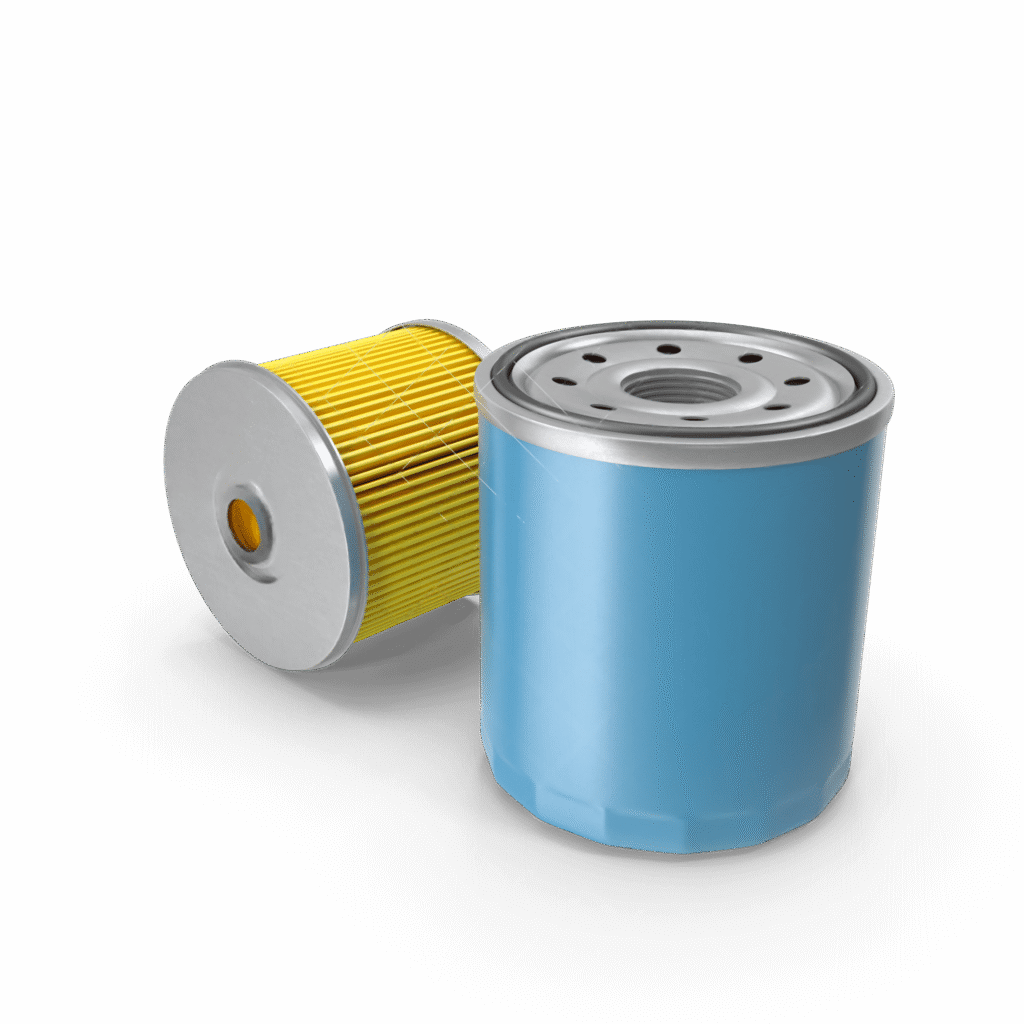

maruti fronx oil filter

oil filter was also importent When the oil change request light blinks, change the engine oil and oil filter.

Remove the screws (1), and then remove the engine under cover (2). If it is difficult to change the oil filter,
remove the whole undercover.

Using an oil filter wrench, turn the oil filter counterclockwise and remove it and Using a clean rag, wipe off the mounting surface on the engine where the new filter will be seated.

Smear a small amount of engine oil around the rubber gasket of the new oil and filter Screw the new filter by hand until the filter gasket contacts the mounting surface.

maruti fronx engine oil change km

Maruti recommends oil changes every 10,000 km or 12 months. For dusty or extreme conditions, consider 7,500 km intervals.

first you need 3.1 litres or 3.7 liters of oil depends on engine model , new filter, drain pan, wrench, filter tool.

Drain Old Oil: Remove the drain plug and collect oil in the pan.

Replace Filter: Swap the old filter for a new one, ensuring a tight seal.

Refill Oil: Pour 3.1 or 3.7 litres of fresh oil via the filler cap.

Check for Leaks: Run the engine briefly and inspect.

Verify Level: Use the dipstick to confirm proper oil level.

Conclusion

our Maruti Fronx deserves the best care, and that starts with understanding its 3.1-litre for 1.0L K1OC and 3.7-litre for 1.2L K12N engine oil capacity and using the right oil grades like 0W-16 or 5W-30.

Regular checks and timely oil changes ensure smooth drives.

I hope this article will solve your query,

thank you.
